303-1097 identifies a Ford variable-camshaft-timing alignment tool, not an entire engine timing kit. If a workshop procedure calls for it, match the tool number, engine and repair operation before buying. A case advertised for “Ford timing” may contain many useful pieces while still missing a particular crankshaft pin, rear camshaft plate or pulley-holding tool required for your job.
For a documented 303-1097 equivalent, OTC identifies its 567620 VCT alignment tool in the 6683 kit. A broader DPTOOL set is another option to investigate when its individual contents match the service procedure. This guide compares documented tool identities and kit contents; it does not certify aftermarket machining accuracy or replace the vehicle’s workshop instructions.
What does tool 303-1097 do?
OTC’s Ford tool cross-reference maps 303-1097 to part 567620, described as a VCT alignment tool. It is used to maintain the specified relationship at the camshaft phasers/sprockets during the applicable timing work. That is a different function from locating the crankshaft at top dead center or aligning the ends of the camshafts.
The distinction is useful when reading a shopping listing. “Replaces 303-1097” tells you which individual function a component is intended to cover. It does not establish that the box contains everything needed for a belt replacement, camshaft removal or crankshaft-pulley job on every engine named in a long compatibility list.
Three buying routes to compare
| Option | Documented identity | When to consider it | What still needs checking |
|---|---|---|---|
| OTC 6683 | 567620, 567621 and 567623 timing tools | You want a small kit with a published manufacturer parts list | Exact engine application and any additional holding tools |
| DPTOOL HTF1010C | Broader set whose listing includes a 303-1097-equivalent component | You need several listed Ford/Mazda timing-tool functions | Current kit contents, engine code and instructions for each piece |
| Assenmacher F1616T | Manufacturer cross-references 303-748, 303-1097 and 303-1550 | You prefer a specialist supplier’s application-led tool set | Separately required rear alignment plate or flywheel tool |
OTC 6683: the clearest small-kit reference
OTC’s 6683 product page describes a Ford 1.6L 4V cam tool set and specifically mentions 2011–2012 Fiesta applications. Its published parts list and operating instructions identify three components:
- 567620 VCT alignment tool, cross-referenced to Ford 303-1097
- 567621 camshaft holding/timing tool, cross-referenced to 303-376B
- 567623 crankshaft TDC timing pin, cross-referenced to 303-748
The verified Amazon item is OTC model 6683, ASIN B00JZXA7XI. This is a useful starting point when those are the references in your procedure. It is not an all-Ford kit. The manufacturer’s product page and older instruction sheet describe applications at different levels of detail, so obtain confirmation for your exact engine rather than extending the vehicle list by assumption.
Documentation is the main reason to compare this option. We have not measured the tools against original Ford fixtures, tested their fit on an engine or established that the kit alone completes every service operation.
OTC (6683) Cam Tool Set - Ford 1.6L 4V Engine
As an Amazon Associate we earn from qualifying purchases.
DPTOOL HTF1010C: broader contents, more checking required
The verified DPTOOL Amazon listing, ASIN B07GV63D7P, identifies model HTF1010C and manufacturer part number HTF1010B. Its advertised contents include a 303-1097-equivalent camshaft-sprocket tool alongside multiple alignment plates, timing pins and other fixtures. The listing names Shenzhen Dapeng Aoto Tools as the manufacturer.
This set makes sense to consider when you have a written list of several required tool numbers and can match each one to a clearly identified component. Do not treat the long assortment of engine sizes in the title as a universal fit guarantee. In particular, similarly named naturally aspirated, turbocharged, petrol and diesel engines can use different procedures and fixtures.
Before ordering, ask for an itemized current contents list and written confirmation for the engine code and repair. If a seller cannot identify which piece substitutes for each required reference, choose a more clearly documented kit. Extra pieces have little value when the critical alignment tool is missing, poorly identified or unsuitable for the engine.
Assenmacher F1616T: a specialist-supplier alternative
Assenmacher’s F1616T page identifies a Ford timing set for 1.6L naturally aspirated and 1.5L/1.6L four-cylinder EcoBoost applications. It lists equivalents to 303-748, 303-1097 and 303-1550, and separately points to potentially required F1616-376B, F1616-1552 and F16393 tools.
That separation is helpful: it makes clear that an alignment set may need another tool for a particular operation. Use the manufacturer’s application support or distributor to establish the complete order. We link directly because an exact Amazon ASIN for this set was not reliably established; a different Assenmacher part should not be substituted merely to supply a shopping link.
A purchase checklist that prevents expensive mistakes
- Identify the engine. Record the model year, engine code, displacement and turbo/naturally aspirated configuration. A vehicle badge alone is insufficient.
- Open the correct workshop procedure. List every special-tool reference for the actual operation, including any crankshaft holding or pulley tools.
- Map references one by one. Compare each required tool with the kit’s part numbers and photographs. Distinguish alignment fixtures from tools designed to resist tightening or loosening torque.
- Check the complete job requirements. Replacement fasteners, timing components, torque tools and engine support equipment may be required separately.
- Inspect before dismantling. Check the delivered kit against its contents list and return terms while you can still pause the repair.
Important use limits
Incorrect engine timing can cause serious engine damage. A timing pin should not be assumed to lock rotation in both directions: OTC specifically notes that its 567623 pin allows counterclockwise movement. Likewise, do not load an alignment plate with pulley-bolt torque unless the applicable instructions expressly permit it.
Use the vehicle-specific sequence, holding method, torque specifications and final verification checks. Do not improvise with a drill bit, modify a tool to force a fit, or use the starter motor while timing fixtures are installed. If the alignment does not match the documented position or a fixture will not seat as instructed, stop and have an experienced technician diagnose the mismatch.
The most useful purchase is the smallest clearly documented set that covers the entire procedure for your engine. Start with the 303-1097 reference, then verify every companion tool before deciding between OTC’s focused kit, the broader DPTOOL assortment or a specialist-supplier order.

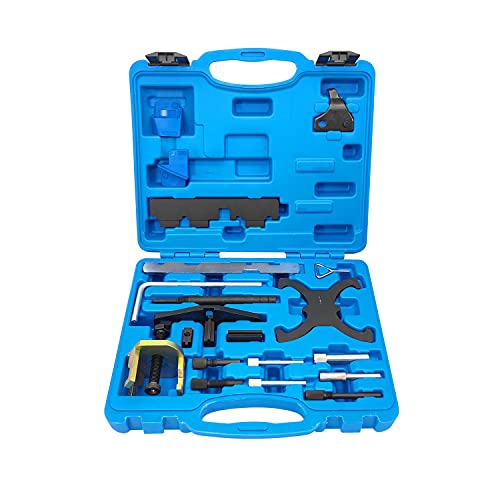

Image note: Legacy illustration of engine timing tool sets. Kit photographs alone do not establish that a 303-1097 equivalent or every tool for an engine is included.
