Choose a conductive pen by the circuit and surface, not by how metallic the ink looks. Circuit Scribe is a practical option for drawing simple paper circuits. MG Chemicals 841AR-P uses nickel-filled acrylic lacquer for suitable electronic substrates. Chemtronics CW2200MTP uses silver ink and a micro-tip for finer trace work.
These are different materials with different resistance, curing and handling requirements. This guide uses manufacturer documentation and verified product identities rather than hands-on testing. Conductive ink is not a universal replacement for copper wire, solder or a properly engineered circuit-board repair.
Conductive pens compared
| Pen | Verified configuration | Intended use | Main check |
|---|---|---|---|
| Circuit Scribe | Single silver-ink rollerball pen; CS-KS-PEN-1X | Low-power paper circuits and compatible educational projects | Surface, trace length and project instructions |
| MG Chemicals 841AR-P | 5 mL nickel-filled acrylic pen | Suitable PCB and electronic-substrate traces | Resistance requirement and full cure |
| Chemtronics CW2200MTP | 8.5 g silver conductive pen with micro-tip | Fine conductive traces and appropriate repair work | Exact MTP model, substrate and handling instructions |
Circuit Scribe: for drawing paper circuits
The Circuit Scribe pen is a silver-ink rollerball sold as a replacement for compatible Circuit Scribe projects. The verified retail option is one pen, model CS-KS-PEN-1X. It is not a complete electronics kit: a power source, components and any magnetic backing or modules needed by the project are separate.
This is the clearest choice here for someone who wants to draw traces on paper rather than dispense a repair lacquer onto a circuit board. The manufacturer explains that surface choice affects conductivity, with smooth photo paper producing different results from absorbent paper. Keep that in mind if a project works on one sheet but fails after being copied onto another.
Use the power source and layout specified by the project instructions. The manufacturer’s FAQ describes resistance and current limits that vary with the paper and trace, so its figures should not be treated as a universal rating for any circuit you draw.
Circuit Scribe CS-KS-PEN-1X Silver Conductive Ink Pen, Single Pen
As an Amazon Associate we earn from qualifying purchases.
MG Chemicals 841AR-P: a nickel-filled trace pen
MG Chemicals identifies 841AR-P as an acrylic lacquer containing conductive nickel flakes. Its current technical sheet specifies a 5 mL pen, a typical 1.5–2.0 mm trace width and best results on a smooth, flat, hard surface. The retail title rounds the net weight to 7.5 grams; the manufacturer lists 7.57 grams.
This is a candidate for suitable electronic-substrate work when its resistance and adhesion characteristics meet the repair requirements. It is not the same material as MG’s silver pen, and choosing nickel solely because it costs less could be inappropriate for a very resistance-sensitive connection.
The cure distinction is important: the current sheet lists a short dry-to-touch time but calls for 24 hours at room temperature for curing. A surface that feels dry is not proof that the finished trace is ready for service. Follow the current technical and safety sheets for the exact product rather than an older seller bullet.
Chemtronics CW2200MTP: silver ink with a micro-tip
Chemtronics lists CW2200MTP as its silver conductive pen with the micro-tip. CW2200STP is the standard-tip version, while CW2000 is nickel-based. Those suffixes and model numbers matter: a seller’s generic “CircuitWorks conductive pen” title does not identify all three correctly.
The 8.5-gram micro-tip listing below is matched using UPC 032599064286, which Newark explicitly associates with CW2200MTP. The Amazon title identifies an 8.5-gram micro-tip pen and carries the same UPC, although its model field uses a different catalog identifier. Check the actual package says CW2200MTP before use.
Consider it when the job calls for the manufacturer’s silver formulation and a finer dispensing tip. It remains a coating process: surface preparation, curing and mechanical support determine whether a repair is suitable. The pen is not a structural adhesive for a loose component or a replacement for a missing connector contact.
Conductive ink, flux and protective coating are different

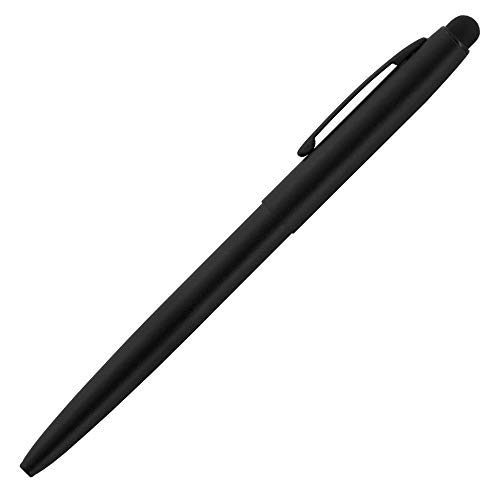

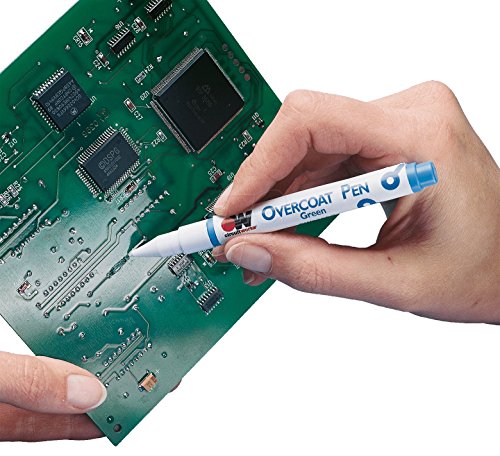

A conductive pen deposits a material intended to carry current after the specified drying or curing process. A flux pen helps with soldering and does not serve as a drawn wire. An overcoat pen forms a protective layer rather than repairing an open conductive path. A touchscreen stylus may have a conductive tip but does not write conductive circuitry.
This distinction is especially important in mixed marketplace search results. Read the function and exact model, not just the phrase “circuit pen.” A repair requiring a conductive bridge will not be solved by buying a solder-mask or flux product that happens to come in a similar barrel.
Resistance matters more than a metallic color
Conductive coatings have meaningful electrical resistance. Longer, narrower or thinner traces can behave differently from a short, broad connection made with the same ink. The surface underneath and the way the material is deposited can also affect continuity and adhesion. A visually neat line is not enough to establish an electrically suitable one.
Manufacturers may quote volume resistivity, sheet resistance or resistance per unit length. These values use different units and conditions, so do not compare the bare numbers as if the smallest always means the best pen. Match the technical data to the geometry and requirements of the particular circuit.
For a repair, establish the failed connection and intended function before selecting the material. A continuity beep alone does not demonstrate that the trace can carry the required load or remain reliable in service. If the circuit’s requirements are unknown, seek qualified repair help rather than treating the ink as an all-purpose fix.
Check the substrate and mechanical movement
A pen that works on paper is not automatically appropriate for a solder mask, flexible membrane, plastic housing or carbon keypad contact. Likewise, a coating intended for a rigid board may not survive repeated flexing. Consult the manufacturer’s compatibility information for the actual surface.
When practical, make a sample on equivalent scrap material first. Observe whether the ink wets the surface, dries as specified and remains attached without bridging neighboring features. Do not scrape or abrade an unknown circuit board simply to create a path; damaged multilayer boards and lifted pads may need a different repair method.
A cautious workflow for a suitable low-power project
- Confirm the task and product. Identify the substrate, required connection and exact pen model, then read its technical sheet, safety sheet and project or equipment instructions.
- Remove power safely. Disconnect the approved power source. Do not work on energized equipment or assume a disconnected device cannot retain hazardous energy.
- Prepare only as directed. Use compatible cleaning methods and let the surface dry. Protect adjacent conductors from accidental ink bridges.
- Practice the flow. Shake or prime the pen as its manufacturer specifies and test on a suitable scrap surface before applying it to the work.
- Allow the specified cure. Do not confuse touch-dry time with full cure. Do not improvise heat treatment in a household food oven.
- Inspect and measure. Check the intended path and adjacent areas for unwanted connections before returning the project to service under its approved procedure.
This is a selection and preparation checklist, not an authorization to repair mains equipment, medical devices, automotive safety systems or high-current battery circuits. Such equipment may require an approved repair process, qualified technicians or replacement parts.
Handling and shelf life
Read the manufacturer’s safety data sheet before opening a repair pen. Industrial conductive coatings can contain hazardous solvents or other ingredients; a pen-shaped applicator does not make them ordinary stationery. Follow the specified ventilation, protective equipment, ignition-control and disposal precautions, and keep them away from children.
Close the cap and clean or store the tip only as directed by the manufacturer. Before buying older stock, check its batch information and stated shelf life. A clogged tip or separated material should be assessed using the maker’s instructions; do not add an arbitrary solvent to revive it.
Frequently asked questions
Can a conductive pen replace solder?
Sometimes a manufacturer-approved conductive coating can form a suitable electrical connection, but it does not automatically provide solder’s mechanical attachment. The correct method depends on the circuit, materials, load and service conditions.
Is silver ink always the best choice?
No. Lower resistance can matter, but application control, adhesion, flexibility and the intended surface also matter. For paper projects, a compatible rollerball system may be more practical than an industrial repair lacquer.
Which pen should I start with?
Start with Circuit Scribe for an approved paper-circuit project, 841AR-P for an appropriate nickel-lacquer trace application, or CW2200MTP when the repair requires its silver formulation and micro-tip. If you cannot define the electrical and material requirements, resolve those before choosing a pen.
