Choose ditch light brackets by vehicle fit and mounting method before comparing finishes or prices. A hood-hinge bracket made for your exact model year usually gives a more predictable starting position. A universal hood clamp can work when there is no dedicated kit, but you need to check the hood edge, panel gap and light clearance yourself.
This guide compares two verified Nilight bracket sets and explains the checks that matter before installation. The recommendations are based on manufacturer specifications and installation guidance, not hands-on vibration or corrosion testing. Both linked sets are brackets only; plan separately for the lights and their electrical installation.
Two mounting approaches to compare
Nilight 90058B for a 2005–2015 Toyota Tacoma
For a second-generation Tacoma, the Nilight 90058B is the more targeted option. It mounts at the hood hinges and includes a driver-side and passenger-side bracket. Nilight specifies 3 mm metal, a black powder-coated finish, a 10 mm light-mount hole and 12 mm hood-mount holes. The manufacturer describes compatibility with small 2- to 5-inch light pods.
That pod-size range is a starting point rather than a guarantee for every lamp. Compare the lamp’s mounting bolt, U-bracket width and housing depth with the available space. A large side-projecting housing may occupy more room than a simple cube with the same nominal face size.
Choose it for: a 2005–2015 Tacoma with the appropriate hood and hinge arrangement. A 2016 or newer Tacoma needs its own fitment. Do not carry the year range over to a different Toyota model.
Nilight 90058B Ditch Light Hood Mount Brackets, Black, 2005-2015 Toyota Tacoma, Two-Bracket Set
As an Amazon Associate we earn from qualifying purchases.

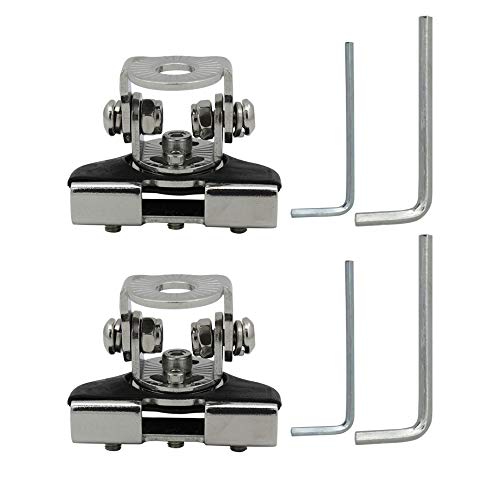

Nilight 90025B for a suitable hood-edge clamp installation
The Nilight 90025B uses clamp-on mounts instead of vehicle-specific hinge plates. The selected Silver-1 two-pack has stainless-steel brackets, protective contact material and screw-operated clamps. It can be useful when you want a removable mounting position and have confirmed that the hood edge can accommodate the clamp.
Its main tradeoff is the amount of fit checking left to you. The clamp dimensions alone do not establish compatibility: folded seams, trim, hood curvature and clearance to the fender all matter. Check the actual clamping surface and the closed-hood gap. Protective material can help isolate the metal, but it is sensible to inspect for trapped grit, movement and finish damage over time.
Choose it for: an installation that has been measured and checked at the intended position. Avoid treating “universal” as a vehicle-specific fit guarantee, and do not assume this set has a documented capacity for a heavy lamp or extra accessories.
What to measure before ordering
Start with the exact year, make and model, then consider any changes to the hood, hinges, cowl or nearby accessories. Product photos showing a similar truck are useful for orientation, but they do not replace the manufacturer’s fitment list.
- Mounting interface: Check the lamp bolt diameter and the space required by its U-bracket, washers and nut.
- Housing clearance: Account for the whole light, including side lenses, cooling fins and cable exit.
- Moving parts: Check the hood through its opening arc and the windshield wipers through their normal operation and service position.
- Driver’s view: Consider the height of the bracket and lamp together from the seated driving position.
- Nearby equipment: A snorkel, antenna mount, hood strut or aftermarket cowl can change the available space.
For another example of year-specific hardware, Cali Raised LED’s CR2360 brackets are specified for 2016–2023 Tacomas and sold as a pair. That fitment is different from the 2005–2015 Nilight set above. Use the current manufacturer’s listing for your own vehicle rather than an open-ended “2016+” title from an older listing.
Installation checks that prevent avoidable problems
Read the instructions supplied with the exact bracket set before disturbing a hinge. Nilight warns installers of the 90058B to remove and reinstall the hood-hinge bolts one at a time, rather than removing both together and risking hood misalignment. Support the hood appropriately and use the vehicle and bracket manufacturer’s fastening instructions. If you cannot keep the hood secure or determine the required torque, have a qualified installer handle the job.
The Cali Raised installation guide also illustrates why final adjustment matters: the bracket should sit close to the hood without touching it, and clearance is checked with the hood closed before the light position is finalized. Its hardware instructions apply to its own brackets; follow the instructions for the set you actually bought.
Route the lamp wiring according to the lighting kit’s instructions so it cannot be pinched by the hood or rubbed by moving parts. A metal bracket is only the mechanical mount. It does not supply the fuse, relay, switch, connectors or electrical protection a particular lighting system may require.
Aim for useful side illumination
Ditch lights are usually positioned near the lower windshield to illuminate beside the vehicle on a trail. Cali Raised suggests roughly 45 degrees outward as a starting direction. Adjust for the actual beam pattern and location; check from the driver’s seat for reflections off the hood or windshield before relying on the lights.
For side-shooter pods, verify left and right orientation so the side emitters face away from the hood. Keep auxiliary trail lights off around other road users, and check the rules applicable to their on-road use where you drive.
Common questions
Do ditch light brackets include the lights?
Neither of the linked Nilight sets includes light pods. A listing called a “kit” may contain brackets alone or a complete lighting bundle, so check its selected contents.
Will a no-drill bracket fit every hood?
No. No-drill describes the attachment method. Vehicle-specific hinge spacing and universal-clamp clearance still need checking.
Can I add a second pod or an antenna?
Only if the bracket maker approves that configuration. An extension changes the position and leverage of the load; a matching bolt hole does not establish structural suitability.
