The right pool vacuum head part is the one listed for your exact head, not simply a part advertised as universal. Start with the molded model number, then identify whether the failed component is a pole connector, spring clip, hose swivel, brush strip, wheel or axle. A cracked head body calls for a different decision from a broken removable handle.
For Hayward SP1068 and SP1068DL heads, the manufacturer’s parts diagram provides a useful starting point. Pentair Rainbow and ProVac heads use a separate numbering system, and even similar-looking models have different handles and axles. This guide covers manual vacuum heads connected to a pole and suction hose. Robotic cleaners, battery-powered vacuums and automatic suction cleaners need their own model-specific parts lists.
Identify the head before ordering
Remove the head from service and photograph its top, underside and connection points. Record every molded number, including a suffix such as R or DL. Measure the hose cuff and compare the handle pivot, pin length, wheel position and brush shape with the original diagram. A brand name or the head’s approximate width is not enough to establish fit.
Keep the old component until the replacement is installed. If the label is missing, send the photographs and measurements to the manufacturer or a pool-parts specialist. Buying several look-alike clips to see which one fits can cost more than identifying the assembly first.
Common parts for Hayward SP1068 and SP1068DL
The Hayward Super Vac owner’s manual identifies the following components for these models. Use its diagram and the instructions supplied with your head to confirm the exact replacement.
| Component | Hayward part number | What to check |
|---|---|---|
| Quick-Snap handle assembly | SPX1067QA | Handle and pole connection |
| Replacement snap spring | SPX1067S | Whether only the removable spring is damaged |
| Hose swivel kit | SPX1068DE | 1¼-inch or 1½-inch hose connection |
| Knurled retaining nut | SPX1068C | Threads and surrounding body condition |
| Three-brush replacement set | SPX1068G3 | Brush-retaining grooves and model identity |
| Three-piece weight pack | SP1068FA | Existing weights and handling problem |
A part number in this table is an identification aid, not a promise that every seller’s similarly titled item is genuine or correctly packaged. In particular, do not assume all triangular Hayward heads use the same brush set.
Hayward SPX1067QA for a damaged pole connection
The SPX1067QA is a sensible replacement to investigate when the removable handle assembly is broken but the head’s mounting points remain intact. Its exact model number appears in Hayward’s manual, and the linked retail record identifies Hayward SPX1067QA with UPC 610377036474.
Inspect the head body before buying. A new handle cannot repair a split mounting lug, damaged pivot hole or broken plastic surrounding the connection. Also distinguish the spring from the whole handle: if only the spring has failed, the separately listed SPX1067S may be the relevant part.
Before checkout: verify the selected product is the SPX1067QA assembly and check which fasteners are supplied. Ignore the retail listing’s inconsistent weight claims; they are not useful compatibility evidence.
Hayward SPX1067QA Quick Snap Connector Assembly Replacement for Select Hayward Vacuum Cleaner Heads
As an Amazon Associate we earn from qualifying purchases.
When replacing the complete head makes more sense
The Hayward SP1068 is an alternative when the original head body is cracked, several components are worn, or the combined replacement bill approaches the cost of a complete suitable head. It is a manual head, so it still needs the appropriate pole, hose and pool suction setup.
Hayward’s documentation specifies both 1¼-inch and 1½-inch swivel connectors. The standard SP1068 and weighted SP1068DL are different packages: the DL includes three weights, while the standard model does not include that optional weight pack. The linked item is SP1068, UPC 610377045926. Compare the complete delivered package with the parts you already own.
Pentair Rainbow and ProVac parts are a separate family
The Pentair 2025–2026 replacement-parts catalog shows why suffixes matter. ProVac 214R and 222R use the R201476 snap-adapt handle; models 214, 222 and 229 use the R201408 metal swivel handle. Their axle references also differ: R201456 for 214R/222R, and R201458 for 214/222/229.
The same catalog identifies R201540 brushes for the Clear View model 196. That does not make them a replacement for every Rainbow head. It also lists the 192 handle in packages with different pin lengths, so a handle-only photograph cannot tell you whether the correct pin is included.
Use the diagram for the complete model, then match the manufacturer’s part number to the seller’s package. A claim that a generic handle replaces both a 152 and a 154 deserves careful checking because those are distinct swivel and one-piece handle designs.
Diagnose the symptom before buying a part
- The pole disconnects: inspect the spring buttons, pole holes, removable handle and head mounting points separately.
- The head scratches or drags: stop using it and inspect brushes, wheels, trapped debris and exposed hardware. Match the replacement to the pool surface and head instructions.
- The hose twists: inspect the swivel for damage or binding rather than assuming more weight will help.
- The head lifts or feels difficult to push: check the manufacturer’s weight guidance and your pool system’s operating instructions. More weight is not automatically better.
- Pickup is weak: a worn brush may be only part of the problem. Have the hose, filtration and suction setup checked before replacing an otherwise sound head.
Installation and suction safety
Switch off the pool equipment before disconnecting suction components or servicing the head. Work on the removed head on a stable surface, keep small pins and springs together, and follow the model’s assembly order. Hayward warns against overtightening the swivel locknut: the connector needs to rotate freely. Its brush replacement procedure involves separating the upper and lower bodies and sliding the brushes out of their grooves.
Keep people out of the pool during vacuuming and maintenance. Never test suction with a hand or body part, leave an open vacuum port accessible, or remove a safety cover to improve suction. The Pool & Hot Tub Alliance warns that exposed suction fittings can cause serious entrapment injuries. Close the pool if a drain cover is loose, broken or missing, and arrange professional repair.
A practical purchase checklist
Order only after you can name the head model, the failed component and the corresponding part number. Confirm package quantity, included pins or bolts, hose size and return conditions. For one failed removable part, a matched replacement can be economical. For a cracked body or multiple failures, compare a complete head compatible with your pool surface and existing equipment.

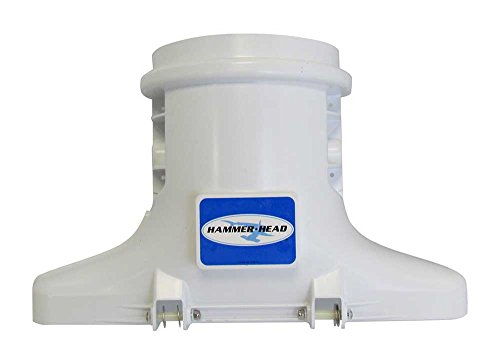

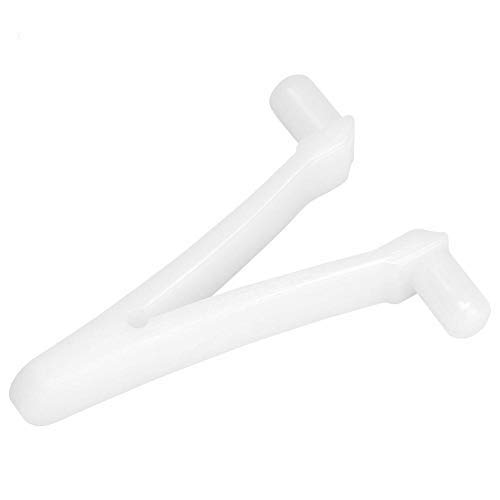

Image note: Examples from the product category; pictured models and variants may differ from the options discussed.
