The best RV shower door roller replacement is the one that matches your enclosure’s original hardware. The RV make and a wheel diameter are not enough: the wheel profile, bracket offset, mounting hole, glass thickness, and top-versus-bottom position all affect whether the door stays safely on its track.
Start with the shower enclosure manufacturer’s part number. If that cannot be found, compare the removed assembly with a dimensioned drawing before ordering. The two parts below are useful candidates for specific conventional shower-door designs, not universal replacements for curved RV doors or every motorhome.
Which replacement should you buy?
- An identified RV enclosure: order the enclosure maker’s matching roller or complete assembly. Give the parts department the enclosure label, photos, and your RV’s model information.
- A 7/8-inch oval-edge wheel on a reusable bracket: compare the Prime-Line M 6002 with the original wheel and mounting screw.
- A frameless panel using a through-glass top bracket and 3/4-inch flat-edge wheel: compare the Prime-Line M 6054 drawing with every relevant dimension.
- A curved enclosure with twin wheels or spring-loaded lower rollers: find its specific matching assembly. Neither example below establishes compatibility.
Replacement parts worth comparing
Prime-Line M 6002: a 7/8-inch oval-edge roller pair
This is a wheel-replacement option for an enclosure that already uses the same roller geometry. Prime-Line’s catalog identifies the M 6002 as an oval-edge nylon ball-bearing roller with a threaded hex hub and supplied No. 8-32 × 3/8-inch machine screws. The M 6002 package contains two rollers; similarly numbered parts can have a different wheel edge or quantity.
Consider it when: your original bracket is sound and the old wheel’s diameter, edge shape, hub projection, and screw connection match. Replacing only the worn wheel can avoid changing a bracket that already positions the panel correctly.
Check before ordering: a nominal 7/8-inch wheel is about 22.2 mm. That does not make every wheel advertised as 22 or 23 mm interchangeable. Compare the drawing and actual track clearance rather than rounding your measurement to a nearby listing.
Prime-Line M 6002 Nylon Tub Enclosure Oval Edge Ball Bearing Roller, 7/8 In., 2 Pack
As an Amazon Associate we earn from qualifying purchases.
Prime-Line M 6054: a matching through-glass top bracket
The M 6054 combines an aluminum top bracket with a 3/4-inch flat-edge roller. The manufacturer drawing shows a 1/4-inch channel dimension and a through-glass fastening arrangement. It is relevant when the bracket itself needs replacing, provided the existing panel and track were designed for this type of assembly.
Consider it when: the full bracket shape, existing hole position, glass accommodation, and wheel profile match your old part. The two-assembly package is a different repair from buying loose wheels.
Skip it when: your door uses a clamp-only bracket, a curved track, a double-wheel carriage, or a spring-release lower assembly. Its installation sheet is a reference for this part; it is not a removal procedure for every RV enclosure. Use only an existing, correctly located glass mounting hole. Never drill or enlarge a hole in tempered shower glass to force a fit.
For the dimensional distinctions, see the Prime-Line manufacturer catalog and the M 6054 installation drawing.
Measure these details before buying
Photograph the installed part from the front, side, and above before loosening anything. Put a ruler beside the hardware for scale. If removal is needed to measure accurately, support the panel and follow the enclosure’s instructions; use a shower-door technician if safe removal is unclear.
- Wheel outside diameter: measure across the wheel, not the bracket or bearing alone.
- Wheel thickness and edge: record flat, rounded/oval, or grooved. A wheel can have the correct diameter and the wrong running surface.
- Hub and fastener: identify whether the hub is threaded, the screw size, the sleeve arrangement, and any washers or spacers.
- Offset: measure how far the wheel sits from the bracket or glass. The wrong offset can make the panel rub or pull against a guide.
- Bracket and hole geometry: record mounting-hole spacing, the hole’s distance from the glass edge, and the bracket’s adjustment range.
- Panel and position: record glass thickness, top or bottom location, single or twin wheels, and whether the part has a release button or anti-jump feature.
A useful parts enquiry includes all those measurements plus a photo of the enclosure label. Ask the supplier to confirm the assembly, rather than merely agreeing that a wheel looks similar. Keep the old hardware until the replacement has been fitted and checked.
Check the cause before replacing rollers
A dragging door does not always need new wheels. Clean loose debris from the track using a method approved for the enclosure finish. Look for a loose guide, displaced seal, rubbing travel latch, damaged track, or a wheel that has come out of its intended running position.
A cracked wheel, seized bearing, excessive sideways movement, or visibly distorted bracket points toward hardware replacement. If the panel catches at the same place on every pass, examine that section of track too. A new roller will not straighten a damaged rail.
If the problem started after travel, inspect the travel restraint and guide system before adjusting the door. More adjustment is not always the answer: raising one corner enough to clear a scrape can reduce engagement elsewhere. Restore the manufacturer’s intended geometry instead of pursuing the lightest possible sliding feel.
Safe replacement and adjustment
Glass-door work deserves care even when the part is inexpensive. Kohler’s shower-door instructions warn that damaged tempered glass can shatter and should not contact hard surfaces. Stop if you find chipped edges, cracks, damaged mounting holes, or a panel whose safe support is uncertain.
- Have help handling the panel and protect its edges from tools, tile, and other hard objects.
- Keep track of the original sleeves, gaskets, guides, and retainers. Replace damaged components with approved equivalents.
- Use the enclosure’s removal sequence and specified fastening method. Do not apply an improvised torque value.
- Reinstall required anti-jump devices and lower guides. Kohler’s roller guidance illustrates why these restraints are part of the safety system.
- Check the entire opening and closing travel slowly. Confirm correct stops, overlap, guide engagement, and travel-latch operation before using the shower or moving the RV.
Frequently asked questions
Can a household shower roller work in an RV?
Possibly, if the enclosure manufacturer approves it or the full assembly specifications match. An RV-specific search label does not prove fit, and a household label does not automatically rule it out. Compatibility is a mechanical question.
Should I replace all the rollers?
Inspect every roller supporting that panel. Replacing a worn matching pair may make sense, but do not mix unrelated top and bottom assemblies just to use an entire kit. Follow the enclosure manufacturer’s guidance.
Should I lubricate a noisy roller?
Check the care instructions first. Some parts need cleaning or replacement rather than added lubricant. An unsuitable spray can affect plastic, seals, finishes, or collect grit. Never use lubrication to disguise a seized bearing or a door that is leaving its track.
The practical choice
Identify the enclosure, measure the complete assembly, and buy against a drawing. The M 6002 and M 6054 are specific fit-check candidates, while an unknown curved or multi-panel RV door is better handled through its enclosure supplier. Correct retention and smooth, controlled travel matter more than the number of wheels in a bargain kit.

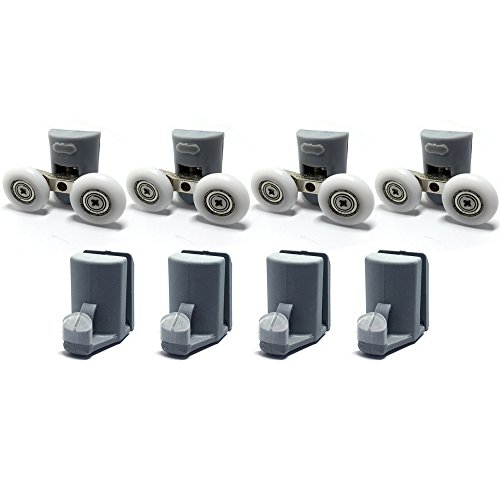

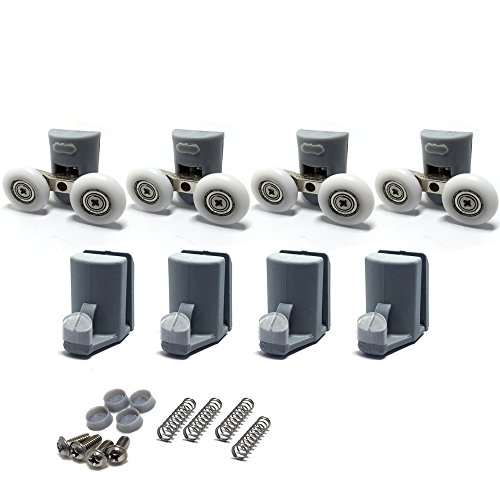

Image note: Examples from the product category; pictured models and variants may differ from the options discussed.
