Flat ducting can mean three different products: a collapsible layflat tube for temporary air-moving equipment, a rigid rectangular duct for building ventilation, or a slim metal periscope behind a clothes dryer. Choose by the equipment and exhaust application before comparing dimensions. Products in these groups are not interchangeable just because they save space.
For a compatible restoration-machine outlet, Dri-Eaz F268 is a cut-to-length layflat option. For a dryer with the right outlet arrangement and clearance, Whirlpool 4396014 is a telescoping metal option. This guide uses manufacturer documents and exact product identities; it does not claim installation or airflow testing.
Which type do you need?
- Temporary air transfer from a dehumidifier or air scrubber: start with the machine’s approved layflat duct size and discharge arrangement.
- Permanent ventilation through a shallow space: use a designed rigid duct system with matching bends, connectors and the required material approvals.
- A tight space behind a dryer: check whether the dryer manufacturer permits a metal periscope and which offset range fits.

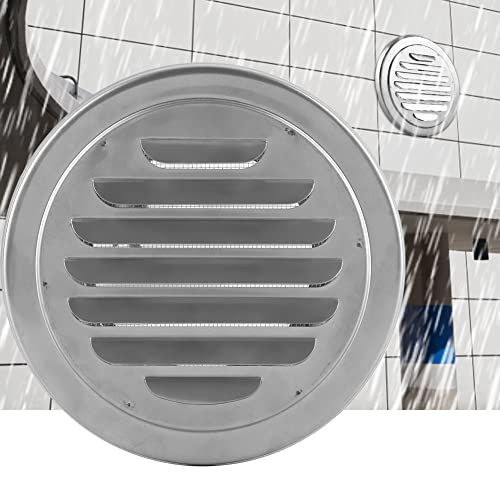

A flat wall grille is an outlet cover, not a replacement for the duct behind it. Likewise, packaging tubing is not automatically suitable ventilation ducting. A product title mentioning “air,” “HVAC” or “dryer” does not establish that it meets your equipment’s installation requirements.
Dri-Eaz F268 for compatible temporary discharge runs
Dri-Eaz F268, 13-Inch-Wide Clear Layflat Ducting, One 500-Foot Roll
As an Amazon Associate we earn from qualifying purchases.
The selected F268 listing is a 500-foot roll with a 13-inch laid-flat width and 4-mil thickness. It can be cut into the lengths required for individual jobs rather than buying a fixed-length reinforced hose. That format is most useful when you repeatedly need to route air from compatible drying or air-filtration equipment.
Dri-Eaz’s current manufacturer listing describes its 500-foot roll as 4-mil polyethylene for 8-inch duct outlets, under part number 108746. EquipSupply identifies 108746 as the updated number for F268. The selected Amazon page uses “polyvinyl” in some copy; the current manufacturer specification says polyethylene. Confirm the actual material if your application depends on chemical compatibility.
The important measurement is the usable outlet fit. Thirteen inches is the flattened width, not a 13-inch round opening. For an ideal flattened circular tube, diameter is approximately twice the flat width divided by pi: 13 inches works out to about 8.3 inches before allowing for practical connection requirements. Use the manufacturer’s stated 8-inch outlet application rather than treating that calculation as a fit guarantee.
Limit: this is flexible layflat material, not wire-supported suction hose. Verify that your machine permits it on the intended outlet, including the allowable length and attachment method. A negative-air machine may use layflat on its discharge; that does not establish suitability on a suction inlet. A 500-foot roll is packaging quantity, not permission to run a machine through 500 feet of duct.
Whirlpool 4396014 for a close-clearance dryer connection
The 4396014 is a telescoping metal dryer vent periscope. Whirlpool specifies a 29–50-inch range and 2.5-inch wall clearance, with a male snap-lock fitting and draw-band collar. It is an option for particular dryer-to-wall outlet arrangements where a conventional connection consumes too much space.
Measure the outlet mismatch separately from the available space behind the dryer. Whirlpool’s installation example describes this part for a 29–50-inch mismatch. That dimension is not the distance the dryer must sit from the wall. Check the outlet positions, connector orientation and the dryer model’s permitted venting arrangement before ordering.
The 2.5-inch figure also does not mean every installed dryer can sit that close. Hoses, electrical connections, gas fittings, cabinetry and the appliance’s own clearances still need room. A periscope does not override those requirements or repair a blocked exhaust route farther downstream.
Limit: this is one vent kit, not a complete exterior exhaust installation. Whirlpool tells buyers to verify appliance compatibility and disconnect electrical power before installation. If moving a gas dryer could strain its connection, have a qualified installer handle the work.
Rigid rectangular ducting needs a complete route
Rigid flat-channel systems are a separate category. Manrose’s ducting brochure lists dimensions such as 110 × 54 mm and 204 × 60 mm, along with matching fittings and resistance figures at different airflow rates. These dimensions describe a rectangular section; they cannot be compared directly with a round hose’s diameter.
Choose the fan and duct route together. Include straight sections, bends, transitions and the final outlet when assessing resistance. A short-looking run with several sharp changes of direction may demand a different design from a straight route. Making the duct flatter or narrower simply to fit a cupboard can compromise the intended airflow.
Check the appliance instructions and local installation requirements for the allowed material, insulation, supports and any fire-resisting construction. Do not substitute plastic flat-channel ventilation duct for dryer exhaust, a combustion flue or another application that requires different materials. Resolve those requirements before enclosing the installation.
Safety checks that matter more than shape
The U.S. Consumer Product Safety Commission’s dryer guidance recommends rigid or corrugated semi-rigid metal duct in place of plastic or foil accordion-type ducting. It also calls for periodic vent and exhaust-duct cleaning. A neat, compact connection still needs an unrestricted, maintained exhaust path.
For temporary layflat work, keep the intended airflow and temperature limits in view. Allegro’s layflat specification, for example, explicitly describes temporary use and notes that its tubing collapses when airflow stops. Its limits apply to its own models, not automatically to Dri-Eaz or another brand. Obtain the limits for the exact product and equipment combination you plan to use.
Before you order
Write down the equipment model, application, outlet dimensions, route length, bends and available clearance. Then confirm what the listing includes: one roll, one duct section and one connector kit can look similar in a search result while solving different problems.
Buy layflat for an approved temporary discharge setup, rigid flat duct as part of a planned ventilation system, and a metal periscope only when it fits the dryer’s documented requirements. Correct application and a maintainable airflow path are more useful buying criteria than a long list of loosely related duct accessories.
