Choose a motorcycle tail light by exact bike fitment, reliable running/brake operation and the installed viewing angle. LED count, a dark lens or a claim of “universal fit” cannot tell you whether a lamp will connect correctly, illuminate the plate or preserve the motorcycle’s required signals.
For a straightforward repair, start with an original-equipment assembly matched to the bike’s year, model and market. For an LED alternative on compatible Harley-Davidson motorcycles, the Custom Dynamics ProBEAM Squareback provides clearly identified variants. Two exact red-lens versions are compared below. This is a documentation-based buying guide, not a brightness or waterproofing test.
Choose the right type of replacement
| Type | Best starting point | Main checks |
|---|---|---|
| Original-equipment assembly | A damaged or failed factory lamp | Exact part number, market version, connector and included hardware |
| Model-specific LED replacement | A documented upgrade using the existing mounting arrangement | Fitment list, electrical compatibility, plate illumination and certification |
| Universal custom-build lamp | A project with deliberately designed mounting and wiring | Dimensions, voltage, weather protection, legal mounting and all required functions |
| Replacement bulb or LED insert | A serviceable housing that accepts a documented replacement | Socket, polarity, optical compatibility and the approved light source |
A tail light is the steady rear position light; the brake or stop light becomes more conspicuous when braking. Many assemblies combine those functions. Integrated turn signals add another function, but that feature should never be assumed from the housing shape or the number of wires.
Custom Dynamics ProBEAM Squareback: two exact red variants
The manufacturer’s Squareback page describes five running-light pipes and 25 brake LEDs in a sealed unit. It is a run/brake replacement for specified Harley-Davidson squareback applications, not a general-purpose integrated-turn-signal lamp. Custom Dynamics states SAE and DOT compliance.
PB-TL-SBW-R: red lens with top plate-illumination window
Choose this version only when the documented fitment and the position of your license plate call for the top illumination window. Amazon identifies the exact red/top-window variant with manufacturer part number PB-TL-SBW-R. Check your plate arrangement before ordering; the window location is a functional choice, not just a cosmetic difference.
Squareback ProBEAM Tail Light - Red with Top Window
As an Amazon Associate we earn from qualifying purchases.
PB-TL-SB-R: red lens without the top window
The no-window version is PB-TL-SB-R. The corresponding Amazon listing is the red Squareback without a top window. It can make sense when the motorcycle has an appropriate separate plate light and the assembly otherwise matches the application. Do not remove the bike’s only plate illumination by selecting this version.
Squareback ProBEAM Tail Light
Fitment limits: Custom Dynamics lists OEM squareback replacements 68245-03/67800205, but excludes 2025 Softails and 2014–2025 International Tri Glide models. Certain Low Rider ST, El Diablo and CVO TriGlide applications need separate adapters; older applications may need a baseplate kit. Use the current year/model selector and installation instructions rather than treating a broad “fits Harley” title as approval.
Mounting and visibility come before styling
Compare the mounting surface, screw spacing, gasket and connector clearance with the original assembly. A lamp that can be attached at an angle is not necessarily designed to be viewed at that angle. Check whether the fender places the housing upright, sloped or inverted, and use a lamp intended for that orientation.
Custom Dynamics specifically advises a squareback style rather than its low-profile alternative for certain bobbed-fender applications requiring inverted mounting. This is a useful reminder that the smallest-looking housing is not automatically the best fit. A luggage rack, plate bracket or packed tail bag can also obstruct a correctly mounted lamp.
Red and smoked lenses should be judged as complete certified assemblies. Do not assume that tinting an existing lens preserves its output or compliance. Product photos taken indoors are poor evidence of how clearly the brake signal will appear in daylight.
Check the electrical system
- Voltage and supply: verify the lamp’s required supply and the motorcycle’s lighting circuit. Do not assume every older or modified bike uses the same arrangement.
- Connector: compare the actual plug and pin functions. A matching connector shell alone is not proof of matching wiring.
- Separate functions: identify running, brake and any turn-signal circuits from the service information. Wire colors are not universal across brands.
- Monitoring and controls: check whether the bike needs a documented adapter, module or other accommodation for the specific LED conversion.
- Added components: buy only the components the manufacturer specifies. Random load resistors are not a universal cure for every electrical fault.
Before replacing a lamp for intermittent operation, inspect its connector, grounding, wiring and brake-switch operation. A new assembly will not fix a broken wire or a switch that fails to trigger the stop light. Have electrical faults diagnosed by a qualified technician when the cause is unclear.
Road-use claims need more than a marketplace badge
In the United States, FMVSS No. 108 covers original and replacement lighting and associated equipment. The complete installation matters, including signal function and visibility. Local rules can also affect vehicle modifications and road use.
NHTSA explains that DOT does not approve individual lamps; manufacturers certify compliance. Ask for the exact product’s compliance information rather than relying on “DOT approved” in a generic listing. Integrated indicators, flashing brake modes and decorative strips should not be presumed legal substitutes for the original equipment.
Before the first ride
With the motorcycle safely stationary, check the running light, brake response from each brake control, left and right indicators, hazards where fitted and license-plate illumination. Confirm that combined functions still work correctly when braking and signaling together. Look from behind and from the sides, and check that luggage does not block the lamp.
Inspect the finished mounting and protected wiring, then recheck after the initial ride for loose hardware or moisture. Keep the motorcycle out of road use if a required light is unreliable.
Bottom line
For supported squareback Harley applications, choose between the verified ProBEAM red variants according to plate illumination and exact fitment. For other motorcycles, begin with their own OEM or manufacturer-documented replacement. Preserving every required lighting function is worth more than buying the most LEDs or the smallest housing.

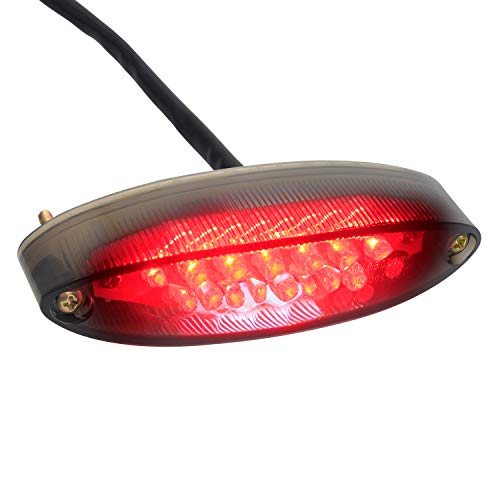

Image note: Legacy illustration of motorcycle lighting styles. No road-use approval or vehicle fitment is implied for the pictured lamps.
