An LGA 1155 Mini-ITX motherboard makes the most sense when you already own a compatible processor and DDR3 memory and want to repair or rebuild a small PC. Start with the exact CPU model, then check the board’s support list, physical layout and condition. A familiar brand name cannot tell you whether a particular secondhand board still works properly.
Three genuine models worth comparing are the ASRock H77M-ITX, Gigabyte GA-H77N-WIFI and ASRock Z77E-ITX. They are historical options for the Sandy Bridge and Ivy Bridge platform. The descriptions below explain their documented differences; they do not confirm current stock, a seller’s package contents or remaining warranty.
Which legacy board should you look for?
- A straightforward wired-network rebuild: ASRock H77M-ITX, with four internal SATA connectors and a useful mix of older display outputs.
- Two wired network connections: Gigabyte GA-H77N-WIFI rev. 1.0, with dual Gigabit Ethernet plus its original wireless module.
- A feature-rich enthusiast-era build: ASRock Z77E-ITX, with Z77, DisplayPort and an mSATA connector, subject to especially careful cooler checks.
All three use the 170 × 170 mm Mini-ITX footprint and have two desktop DDR3 memory slots with a documented 16 GB maximum. Their similar size does not make their CPU-socket placement, headers or cooler clearance interchangeable.
ASRock H77M-ITX: a practical starting point for a rebuild
The H77M-ITX specifications identify an Intel H77 chipset, one full-length PCIe slot and Gigabit Ethernet. Storage connections comprise two SATA 6 Gb/s ports and two SATA 3 Gb/s ports. There are also two rear USB 3.0-class ports and an internal header for two more, useful when your case has matching front USB connectors.
HDMI, DVI-D and VGA provide options for older monitors. Those motherboard display outputs require a processor with integrated graphics; the presence of a video connector alone is not sufficient. This board suits a modest existing-parts project when its port selection matches what you actually use.
The biggest caution is age and support. ASRock lists March 2021 as the end of service, including technical and security-related support. Treat an old manufacturer product page as documentation, not evidence that a board is still a supported new purchase.
Gigabyte GA-H77N-WIFI rev. 1.0: useful dual Ethernet
The GA-H77N-WIFI rev. 1.0 stands out for its two Realtek Gigabit Ethernet connections. That can be useful for a small lab system that needs separate network links while preserving the single PCIe x16 slot for another device. Whether your intended operating system supports the network hardware still needs checking.
The original specification includes 802.11b/g/n Wi-Fi and Bluetooth 4.0. A used unit may arrive without its wireless module or antennas, so request photographs and an explicit parts list. Do not assume the wireless specification includes newer Wi-Fi standards.
Like the H77M-ITX, it has two SATA 6 Gb/s and two SATA 3 Gb/s connectors. Its rear display choices include two HDMI ports and DVI-I. Gigabyte labels this model “Legacy”; compare the printed revision on the actual board with the support page before downloading a BIOS or manual.
ASRock Z77E-ITX: more features, more fit checks
The Z77E-ITX adds an enthusiast-oriented Z77 chipset, support for unlocked K-series processors and DisplayPort alongside HDMI and DVI-I. Its original specification includes a Wi-Fi module, four rear USB 3.0-class ports and a separate mSATA storage connector. The mSATA connection is for that older SATA SSD format, not a modern M.2 NVMe drive.
Cooler compatibility deserves particular attention. Noctua’s model-specific compatibility list flags several coolers whose backplates conflict with components behind this board. Check your exact cooler rather than relying on an “LGA1155 compatible” label. Case height, memory clearance and access to the expansion slot matter too.
ASRock records end of service in April 2020. Its extra features are a reason to examine it for a specific restoration, not a reason to pay a premium without proof of condition. Start any rebuilt system at standard settings before considering tuning.
Six checks before paying for an LGA 1155 board
- Match the complete CPU name and BIOS requirement. Use the exact board’s CPU-support list. A broad claim such as “supports Core i7” leaves out the generation and firmware details that determine compatibility. Ask the seller to show the installed BIOS version.
- Check the memory modules. These three boards call for non-ECC, unbuffered desktop DDR3. Confirm the module capacity and supported configuration in the manual or memory list. DDR4 and DDR5 cannot replace DDR3, and laptop SO-DIMMs are a different physical format.
- Request evidence from the actual board. Ask for clear socket, front and back photographs, plus a BIOS-screen image showing the processor and detected memory. Inspect for bent socket contacts, corrosion, missing components and damaged connectors. A stock photograph does not establish condition.
- Inventory everything included. Confirm the I/O shield, wireless parts where applicable, and any cables you need. Read the PSU-connector and front-panel diagrams before deciding whether the board suits your case and power supply.
- Plan expansion in advance. Each board has one full-length PCIe slot. Decide whether a graphics card or another expansion device needs it. The H77M-ITX manual also explains that a Sandy Bridge CPU runs that slot at PCIe Gen 2; the board’s Gen 3 label cannot upgrade the processor’s capability.
- Price the whole repair. Include missing accessories, shipping, a compatible cooler and the risk of return postage. Get the seller’s return terms in writing, especially for intermittent faults or an item sold as untested.
When keeping LGA 1155 is worthwhile
A reasonably priced, verified working board can be sensible for reusing hardware or preserving a specific older setup. Download the exact manual first and confirm that the operating system and applications you intend to run remain suitable.
If you must buy the processor, memory and motherboard together, compare the complete cost with a newer small PC before committing. For a legacy rebuild, choose the board that meets your actual port and fit requirements, with the clearest condition evidence and return protection. Those details matter more than an old ranking or an impressive feature list.

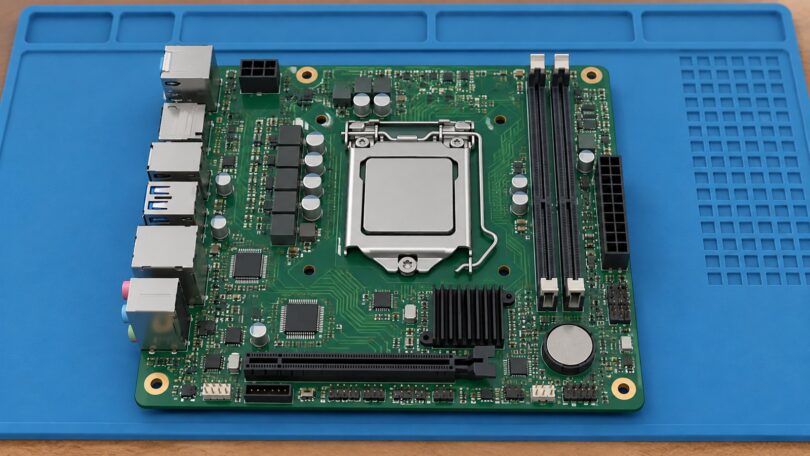

Image note: AI-generated editorial illustration; not a photograph of the named product.
